Raman Spectroscopy

Home » Applications » Raman Spectroscopy

Avantes Raman Spectroscopy Solutions for Material Identification and Process Monitoring

Raman spectroscopy is a powerful analytical technique used to identify and characterize materials based on their unique molecular fingerprints. Avantes Raman spectrometers provide a cost-effective and flexible alternative to traditional turnkey systems, delivering the sensitivity and performance required as core components within process monitoring and analytical setups across applications ranging from pharmaceutical analysis and polymer identification to battery research and semiconductor characterization. Rather than offering complete, fixed-configuration systems, our modular spectrometers integrate seamlessly into your existing process monitoring architecture, customized to meet the unique demands of your measurement challenge without unnecessary complexity or cost

Contact a Spectroscopy Expert

Introduction to Raman Spectroscopy

Raman spectroscopy is an analytical technique that measures the inelastic scattering of light as it interacts with molecular vibrations. This scattering produces a unique molecular fingerprint for each material, providing information on chemical composition, crystallinity, and structural changes such as stress, strain, and phase transitions.

At Avantes, we enhance Raman performance by combining high-sensitivity AvaSpec spectrometers with optimized laser sources, including 532 nm and 785 nm excitation. Each system is carefully configured to match the selected laser wavelength, ensuring maximum signal quality and reliable results for precise Raman analysis.

Why Choose Avantes?

  • Complete Raman Bundles: Laser, spectrometer, software, and accessories designed to work together.
  • TE-Cooled Spectrometers: Reduce thermal noise and enable longer integration times for weak Raman signals
  • Multiple Excitation Options: Available with 532 nm and 785 nm configurations.
  • Modular Design: Customize systems to match your application requirements.
  • Expert Application Support: Work directly with spectroscopy specialists during system selection.
Read More

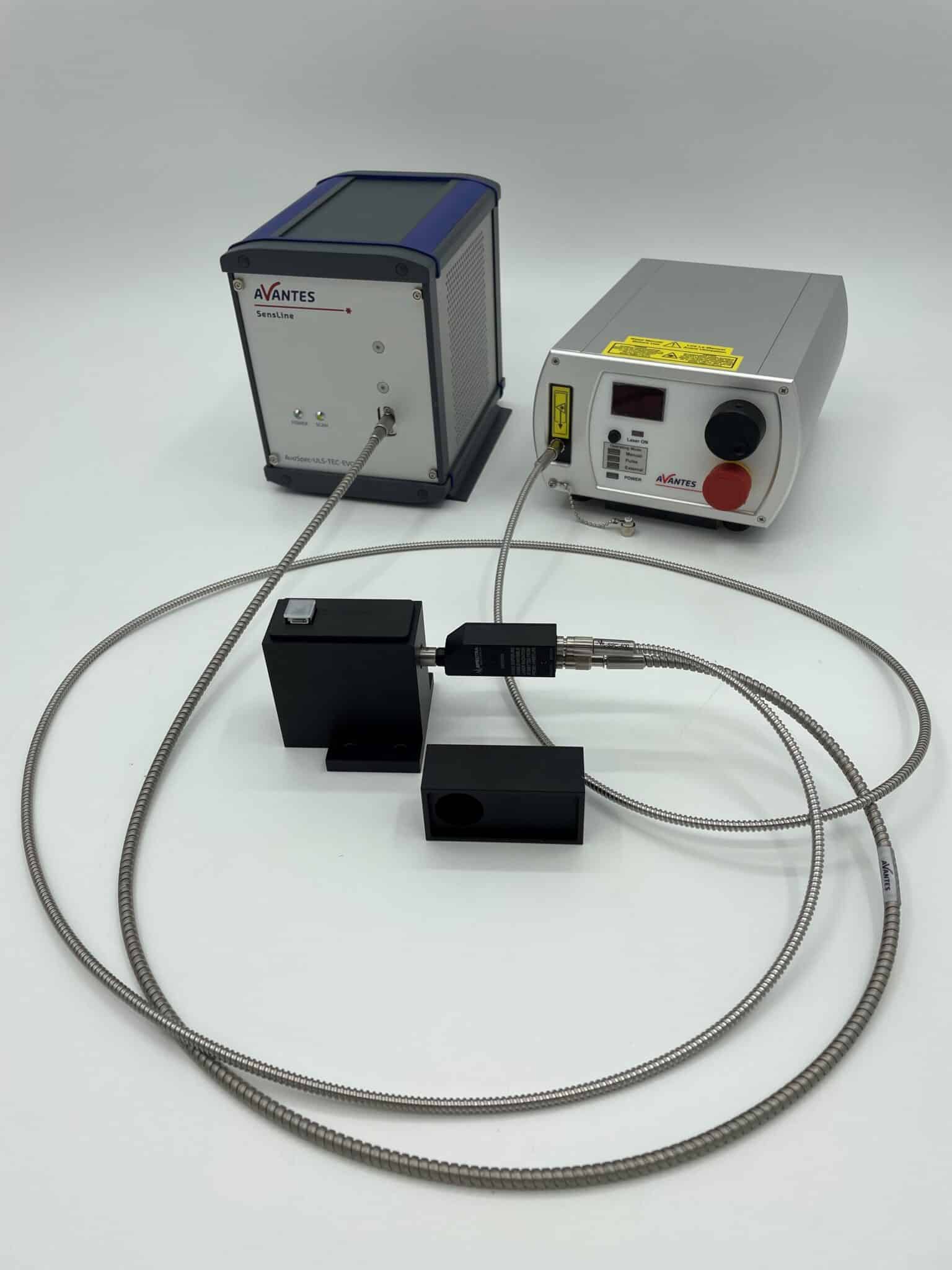

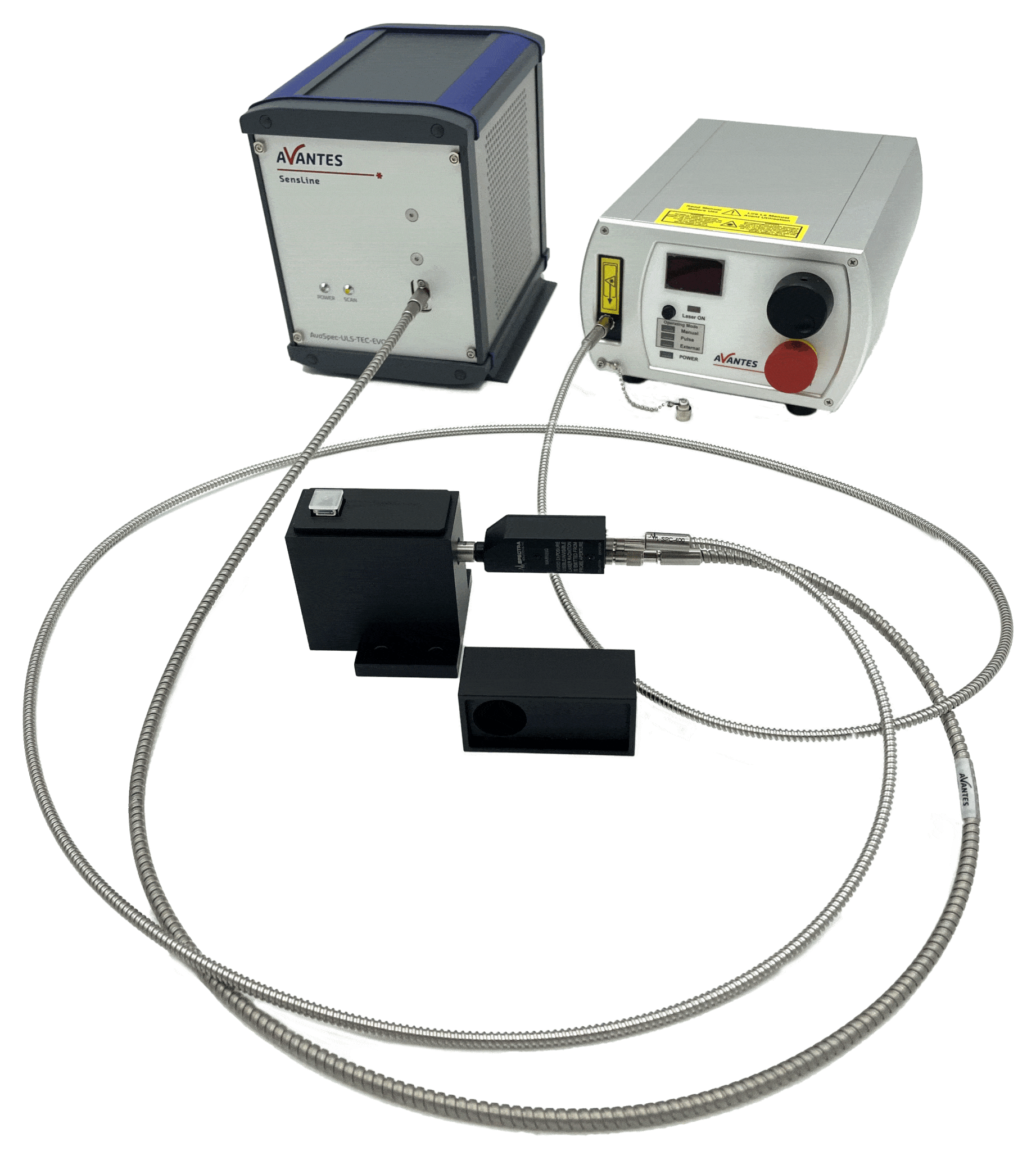

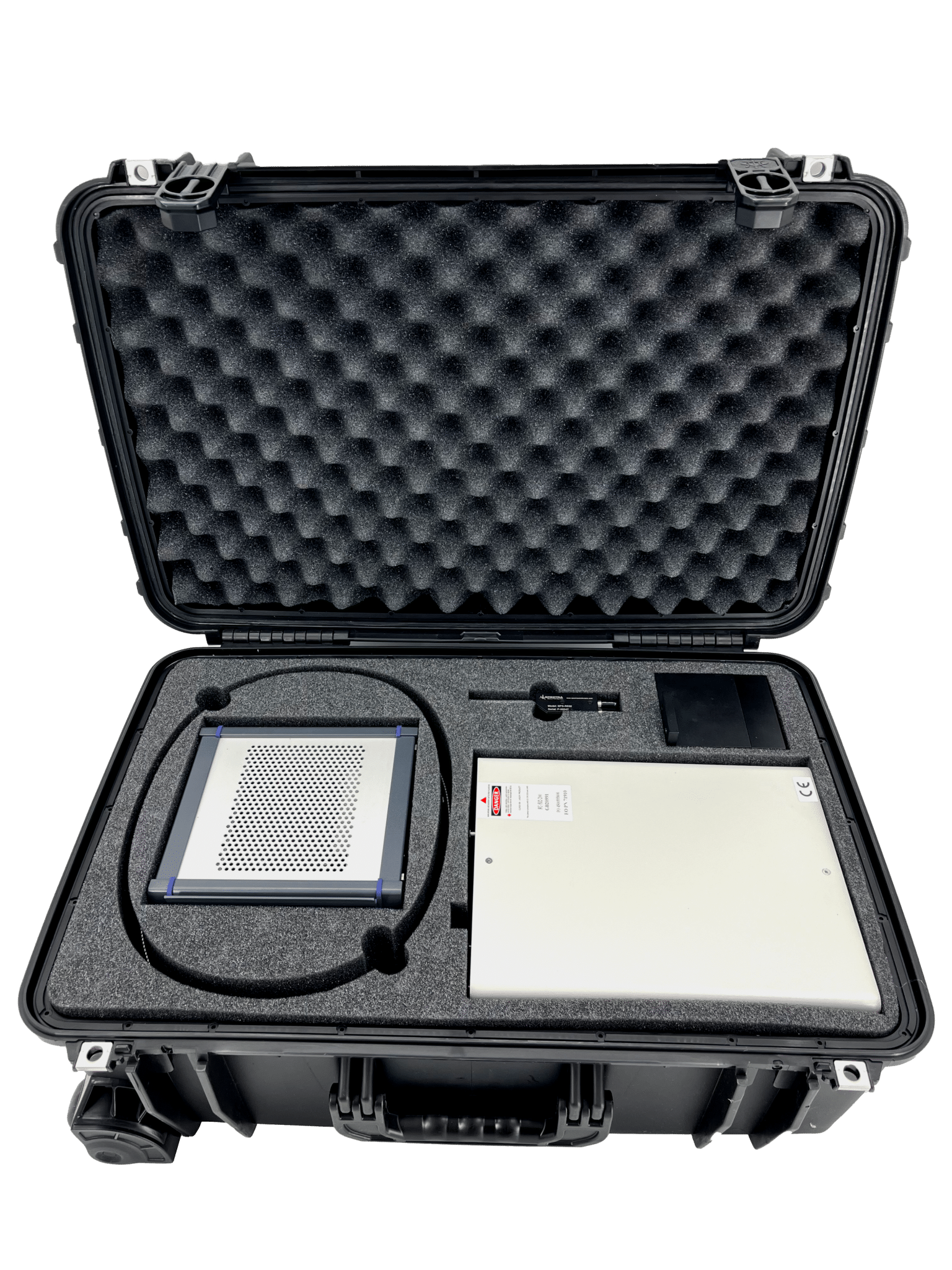

Ava-Raman-Kits

The Ava-Raman Kits are easy-to-order Raman spectroscopy solutions designed to simplify system selection while delivering reliable, high-quality measurements for a wide range of research applications. Each modular kit can be expanded with accessories such as an XYZ stage for precise sample positioning, allowing you to customize your system as your analytical needs evolve.

product image

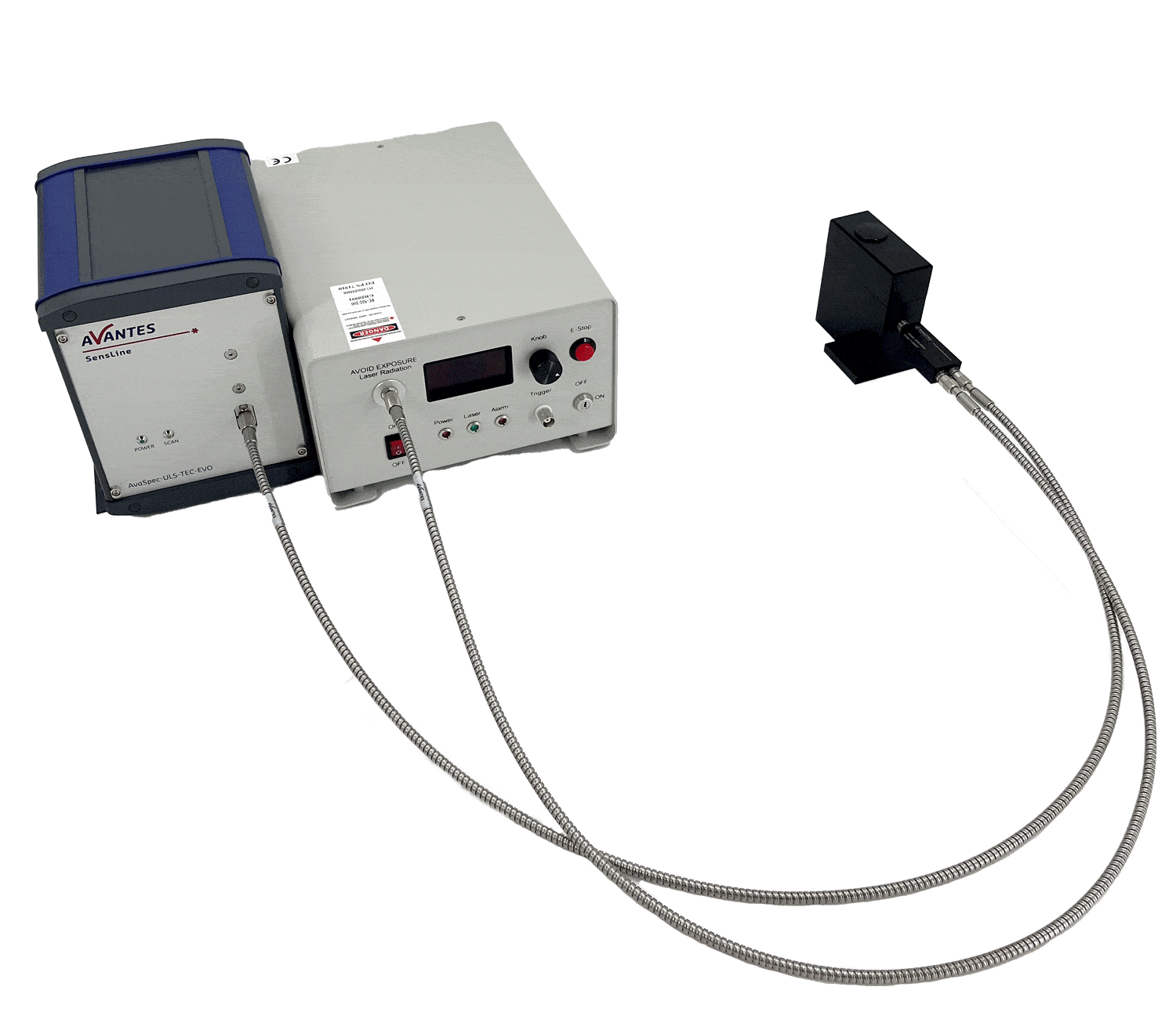

Ava-Raman-KIT-532

• Spectrometer: AvaSpec-ULS2048x64TEC-EVO Slit 25-RS-FCPC, OSF-600,
• Grating NC (532-1050 nm, 100-5400 cm-1; 10 cm-1 Resolution (user replaceable
• slit can provide higher resolution)
• Laser: 532 nm 100 mW single mode, FCPC entrance.

Download Data Sheet
product image

Ava-Raman-KIT-785

• Spectrometer: AvaSpec-ULS2048x64TEC-EVO Slit 25-RS-FCPC, OSF-600,
• Grating SI (785-1050 nm, 100-3500 cm-1; 7 cm-1 Resolution (user replaceable
• slit can provide higher resolution)
• Laser: 785 nm 500 mW multimode, FCPC entrance.

Download Data Sheet

Spectrometers

Avantes offers a range of Raman spectrometers designed to meet the performance requirements of applications from routine material identification to advanced research. Whether you need maximum sensitivity for weak Raman signals, exceptional spectral resolution, or a compact, high-performance solution, our modular spectrometers provide the flexibility and reliability to fit your measurement needs.

product image

AvaSpec-HERO

The AvaSpec-HERO is designed for demanding Raman spectroscopy applications requiring exceptional sensitivity and spectral resolution. With a thermoelectrically cooled, back-thinned CCD detector, low-noise electronics, and a high-throughput optical bench, it captures weak Raman signals with outstanding signal-to-noise performance. Its modular, configurable design makes it ideal for many applications.

Read More
product image

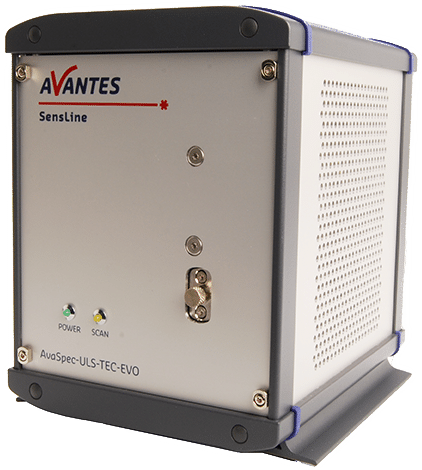

AvaSpec-ULS2048x64TEC-EVO

The AvaSpec-ULS2048x64TEC-EVO is built for Raman spectroscopy applications that require exceptional sensitivity to weak signals. Its thermoelectrically cooled, back-thinned CCD detector, ultra-low stray light optical bench, and low-noise electronics deliver excellent signal-to-noise performance, even during long integration times. With a modular design and configurable optics, it's an ideal choice for low-light Raman measurements in pharmaceuticals, materials science, semiconductors, and advanced research.

Read More
product image

AvaSpec-NEXOS™ NIR Enhanced

The AvaSpec-NEXOS™ NIR Enhanced is a compact Raman spectrometer designed for applications using near-infrared excitation, such as 785 nm lasers. Its advanced NIR-enhanced CMOS detector delivers up to 2× higher sensitivity in the 700–1100 nm range, providing excellent signal-to-noise performance for faster, more reliable Raman measurements. With its small footprint and modular design, it's an ideal solution for laboratory, OEM, and portable Raman systems.

Read More

Software

product image

AvaSoft Application - Raman

We offer AvaSoft-Basic free with our AvaSpec series spectrometers. It features user-friendly, mouse-driven controls with pull-down menus and allows instant readouts of wavelength, pixel, and Y-axis magnitude.

Read More
product image

Panorama Software

We also offer Panorama©, a modular spectroscopy software for advanced users needing specialized analytical functions. It allows easy manipulation of 2D and 3D spectroscopic data, with features like noise reduction, functional group assignment, and advanced reaction monitoring.

Read More

Raman Bundles

Avantes offers three turnkey Raman spectroscopy bundles developed in partnership with industry-leading providers. Each solution includes a high-performance Raman spectrometer, a 785 nm laser-probe combination for enhanced Raman signal collection, and advanced software for spectral acquisition and analysis. These modular systems deliver accurate molecular identification and can be customized for applications ranging from pharmaceutical analysis and battery research to semiconductor and polymer characterization.

product image

Ava-Raman-D (Highsense Bundle)

For the most demanding applications.
The AvaSpec-Hero is at the heart of this bundle, featuring a high-end, cooled, back-thinned detector, low-noise electronics, and an optical bench with a high numerical aperture. These elements combine to deliver exceptional signal-to-noise ratio and dynamic range.

Read More
product image

Ava-Raman-E (Performance Bundle)

For rigorous applications.
This bundle features a cooled version of the spectrometer found in the Ava-Raman-A, allowing for extended integration times while minimizing thermal noise, making it ideal for more demanding tasks.

Read More
product image

Ava-Raman-F (Basic Bundle)

For standard applications.
This entry-level bundle is built around an uncooled spectrometer, making it suitable for applications with reasonably strong signals.

Read More
