The Avantes collection of Spectroscopy accessories and fiber optics provide complete interoperability within the Avantes modular platform and have been designed or curated to ensure the easiest and most accurate measurements possible.
Avantes offers sampling and light attenuation accessories to meet the needs of nearly any measurement need. From cooled cuvette holders to integrating spheres and filter holders, you will find the right spectroscopy equipment to meet your needs from Avantes.
The CUV-UV/VIS, CUV-FL-UV/VIS and CUV-ALL/UV/VIS are specially designed for absorption and fluorescence measurements and should be used with standard 10x10 mm cuvettes.
Buy it Now in the shop!
Direct-attached cuvette holders can mount a cuvette holder directly to your light source
Buy it Now in the shop!
The Avantes CUV-UV/VIS-TC offers a temperature controlled cuvette holder for extra stability during demanding measurements such as fluorescence. The temperature can be set anywhere between -30°C and +105°C with an accuracy of 0.05°C.
Read More
The variable pathlength cuvette holder features a variable, adjustable path length, ranging from 10-160 mm, ensuring maximum flexibility. It can be used as a standard cuvette holder with a 10 mm path length, as a filter holder with 2 mm path length or any path length up to 160 mm.
Read More
Avantes offers two types of in-line filter holders: the FH-INL-1” is designed to hold one-inch filters from 1-60 mm thick, the FH-INL is designed for 1/2” or 12-13 mm filters of 1-8 mm in thickness.
Buy it Now in the shop!
The Avantes FH-DA series of filter holders can hold 0.5-inch filters up to 8 mm thick and are equipped with two quartz collimating lenses for the UV/VIS/NIR range. Avantes offers a wide range of round 12 mm filters.
Buy it Now in the Shop!
The in-line fiber-optic attenuator can be used for all UV-VIS-NIR applications and ATT-INL-EXT setups where light intensity has to be reduced. This device is an iris attenuator which controls light throughput to avoid detector saturation.
Buy it Now in the Shop!
The direct-attached attenuator can be used for all situations where detector saturation is an issue or light intensity has to be reduced. It is attached to a light source with an SMA connector to fiber couple with other Avantes system components.
Buy it Now in the Shop!
The combined cuvette holder, attenuator and filter holder offers the most flexible setup. Control the light throughput from 0-100%, use the cuvette holder for any cuvette up to 10x10 mm, and add half inch diameter (12-13 mm) filters of 1-8 mm thick.
Read More
The Beam Splitter gives you a flexible option for using dual light sources or spectrometers. It mounts directly to the front of any AvaSpec spectrometer or AvaLight light source, eliminating the fiber interface.
Read More
The fiber-optic switch from Avantes facilitates the automatic shuttering of a spectrometer or to correct for light source drift. Can be used automatically or operated electronically via a TTL pulse from an external source or AvaSpec spectrometer.
Read More
Avantes offers three additional types of flow cells: A long-pass absorbance flow cell that is designed for measuring low concentrations of substances; an absorbance flow cell, available in different optical path lengths: 2.5 mm, 5 mm, 10 mm, and 20 mm, and a fluorescence flow cell that can analyze samples using the fluorescence technique.
Read More
These in-line flow cells are available for tubing diameters of 1/4, 1/2 and 1 inch. The flow cells consist of Swagelok union cross tube fittings and two UV/VIS/NIR collimating lenses.
Read More
The micro flow cells feature a Z-design and can easily be coupled to 1.5 mm PTFE tubing with 0.5 mm inner diameter. Typically these are used for absorption measurements and HPLC applications.
Read More
A collimating lens is used to convert divergent beams of light into a parallel beam.
Buy it now in the shop!
Cosine correctors are used to collect light from a 180° angle. This eliminates optical interface problems associated with the light collection sampling geometry inherent to other sampling devices such as bare fiber-optics, collimating lenses or integrating spheres.
Buy it now in the shop!
These feedthroughs are designed for the use with fiber-optics in vacuum chambers, such as for plasma and coating deposition monitoring. They can be used in chambers with wall thicknesses of 5-40 mm and vacuum levels up to 10-7 millibar.
Buy it Now in the Shop!
This C-mount adapter easily mounts an Avantes fiber-optic spectrometer to a microscope and connects to an SMA or FC/PC fiber-optic cable and features an outside diameter of 38 mm, 35 mm long to slide inside the tube of a microscope.
Read More
The probe holder enables positioning of the probe tip relative to a sample for diffuse reflection measurements.
Buy it Now in the shop!
An integrating sphere works as a light collector. The light collected can be used as a diffuse illumination or measurement source. The basic principle is that light enters the sphere through the sample port, goes through multiple reflections on the highly reflective, Lambertian surface of the sphere and is scattered uniformly around the interior of the sphere.
Read More
Provides up to 160 times more light on your sample for a reflection measurement relative to our standard reflectance integrating sphere. The sphere provides diffused halogen light on your sample without the losses associated with fiber-optic coupling.
Read More
Avantes offers the AvaSphere-100, -150 and -200mm for the measurement of high powered LEDs and sources.
Read More
The variable collimating lens holder is the perfect tool for transmission measurements of samples of various sizes and thicknesses. The vertical bars can be adjusted to samples up to 160 mm thick. The base is made of anodized aluminum and features adjustable mount bars.
Read More
The Optical Post Mount (OPM) can be used for easy mounting a collimating lens on a bread-board laboratory table, rail carriers and other bench plates.
Read More
The AvaTripod is a flexible and versatile accessory, featuring an attachment head with two holes; one measuring 6.8 mm in diameter to hold the barrel of a cosine corrector (CC-UV/VIS) or a reflection probe and a setscrew to hold the probe or cosine corrector in place. The second hole is a 3/8”-24 threaded hole for a COL-UV/VIS collimating lens.
Read More
This transmission and reflection stage is the ideal companion to make it easier to perform reflection and transmission measurements. The TR-stage consists of a top plate to hold a collimating lens or reflection probe complete with a shield against ambient light, a middle plate intended for a sample, and a bottom plate used to mount an integrating sphere.
Read More
The AvaTrigger. is designed for use with any AvaSpec-USB2 spectrometer, it enables two different external triggering methods: optical and manual.
Read More
The FOM to configure systems which enable a single light source and spectrometer to make multi-point serial measurements. The device is available in three different configurations: 1 input to 16 outputs, 2 inputs to 8 outputs or 4 inputs to 4 outputs.
Read More
Avantes offers the WS-2 reference tile for diffuse reflection measurements and the RS-2 for specular reflection measurements.
Buy it Now in the shop!
Most AvaSpec spectrometers are USB powered, but some users prefer to externally power their instrument. Avantes PS-12V and PS-24V can be used to connect your AvaSpec spectrometer and AvaLight light sources to any 100-240V power connection.
Read More
Avantes offers a wide range of cables to connect your AvaSpec spectrometer to an AvaLight series light source or one of our many accessories .
Read More
Avantes Spectrometers feature great flexibility offering multiple Input /Output connections. The DEVKITs make life easier in the development-stage by facilitating a connection using screw terminals and without the need for fabricating or soldering a cable.
Read More
Avantes' new remote-controlled direct-attached shutter eliminates problems that can arise when taking a dark measurement in many different applications with different integration times. Its unique position between the spectrometer entrance and the input fiber makes it the ideal accessory to facilitate automatic shuttering of a spectrometer.
Read More
Avantes fiber-optic switches (FOS) facilitate automatic shuttering of a spectrometer or if desired they correct light source drift. These two capabilities of the FOS are achieved through either the FOS-1-inline for automatic shuttering or the FOS-2-Inline.
Read More

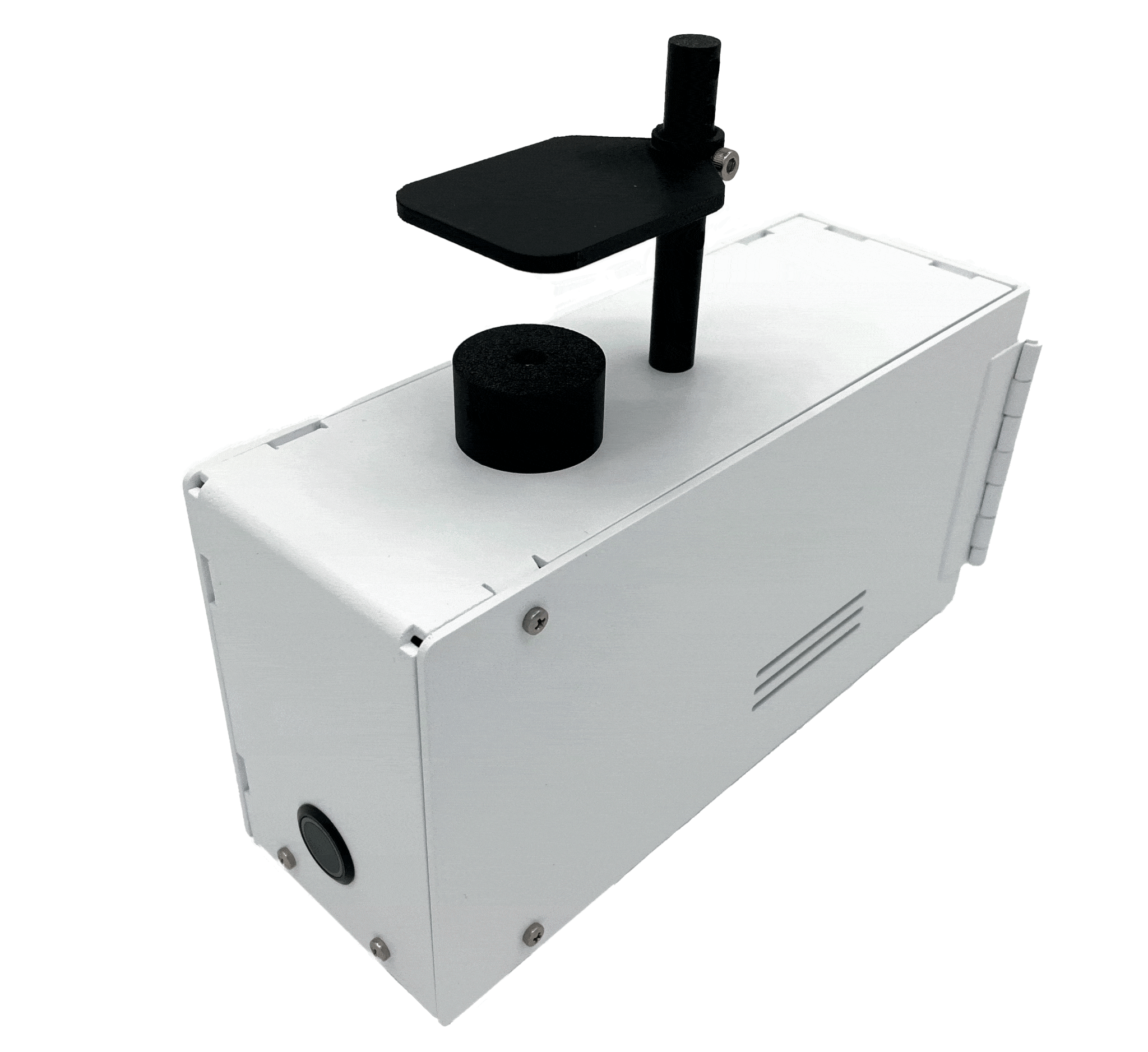

The reflectometer is an easy-to-use package that incorporates a halogen light source, a reflection probe, and the AvaSpec-Mini to perform reflection, thin film, and parylene measurements.
