Light Sources

Many spectroscopy applications require a source of illumination or, in the case of applications like fluorescence, excitation energy. Avantes offers a wide selection of light sources designed for compatibility with the AvaSpec modular platform and to deliver the appropriate wavelengths to suit your application needs. Sources include continuous wave tungsten-halogen, deuterium halogen, pulsed Xenon as well as LEDs and calibration lamps.

product image

AvaLight-DHc

The AvaLight-DHc has both a deuterium light source and a halogen light source, providing you with light between 200 and 2500 nm suitable for nearly all absorbance chemistry applications.

Wavelength Range: 200-2500 nm

Features/Applications:
UV/VIS Absorbance
Specular Reflectance
Thin Film
Transmission

Read More
product image

AvaLight-HAL-S-Mini

The AvaLight-HAL-S-Mini is a compact, stabilized halogen light source, with adjustable focusing of the fiber connection, maximizing output power at the desired wavelength. It also has adjustable output power to provide extra power or longer bulb life.

Wavelength Range: 360-2500 nm

Features/Applications:
Diffuse Reflection
Transmission-VIS/NIR
Thin Film
Color Measurements
Fluorescence

Read More
product image

AvaLight-D(H)-S

The AvaLight-DH-S is Avantes’ most powerful deuterium halogen source. Like the DHc it is also a combined deuterium and halogen light source, capable of transmitting light in the UV/VIS/NIR-range, but has 35 times more halogen output and up to 300 times more deuterium power.

Wavelength Range: 175-2500 nm

Features/Applications:
Thin Film
Broadband UV/VIS Absorbance
Transmission

Read More
product image

AvaLight-DH-S-BAL

The AvaLight-DH-S is a powerful deuterium halogen source in which the very dominant alpha peak at 656 nm is reduced by a dichroic filter.

Wavelength Range: 215-2500 nm

Features/Applications:
Thin Film
Broadband UV/VIS Absorbance
Transmission

Read More
product image

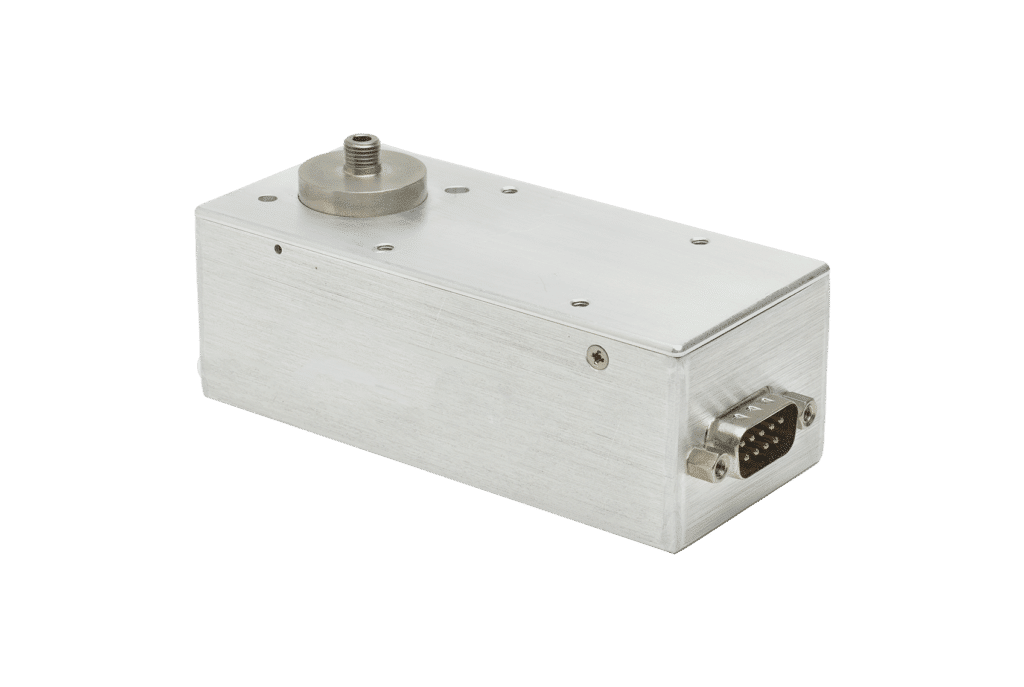

AvaLight-XE-HP

The AvaLight-XE-HP is a pulsed Xenon light source in a compact housing and is ideal for OEM integration.

Wavelength Range: 200-1000 nm

Features/Applications:
Fluorescence
Diffuse Reflection
Process Control

Read More
product image

AvaLight-XE

The AvaLight-XE is a pulsed xenon light source perfect for ultraviolet applications like fluorescence.

Wavelength Range: 200-1000 nm

Features/Applications:
Diffuse Reflection
UV/VIS Absorbance
Process Control

Read More
product image

AvaLight-HAL-CAL-Mini

The AvaLight-HAL-CAL-Mini is a compact, affordable, NIST-traceable calibrated light source to measure absolute spectral intensity.

Wavelength Range: 350-1095 nm

Features/Applications:
Radiometry
Intensity Calibrations

Read More
product image

AvaLight-CAL-(Mini)

The AvaLight-CAL series are spectral calibration lamps. They are available in Mercury-Argon (253.6-922.5 nm), Neon (337-1084.5 nm), Argon (696.5-1704 nm) Zinc (202.5-636.2 nm) and Cadmium (214.4-643.8 nm) versions.

Wavelength Range: Depends on configuration

Features/Applications:
Wavelength Calibration

Read More
product image

AvaLight-LED

The Avalight-LED is a compact, low-cost light source meant for fluorescence applications. It produces continuous or pulsed spectral output at different wavelengths.

Wavelength Range: Depends on configuration

Features/Applications:
Fluorescence Excitation
Narrow-band Absorption

Read More
product image

AvaSphere-50-LS-HAL

The AvaSphere-50-LS-HAL-12V is a combination of an integrating sphere and a halogen light source. The sphere provides diffused halogen light on your sample without the losses associated with fiber-optic coupling.

Wavelength Rage: 360-2500nm

Features/Applications:
Diffuse Reflection
Color Measurements
NIR Grain Analysis

Read More
product image

AvaLight-HPLED

Our newest light sources were created to work specifically with fluorescence applications. They are high powered, compact, low cost and meant for more demanding applications.

Wavelength Depends on Configuration

Featured Application:
Fluorescence Measurement

Read More
